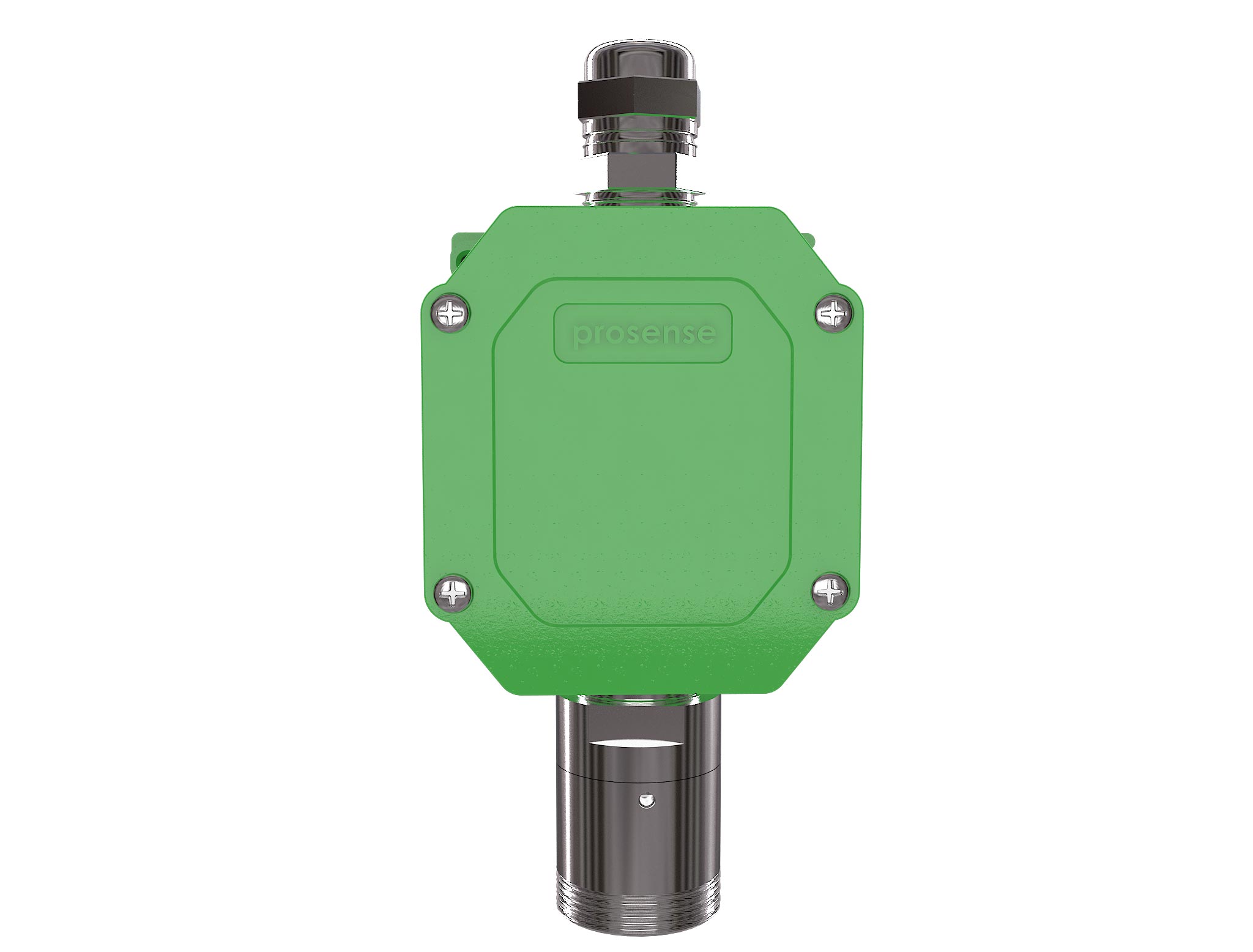

As a Zone 2-Category 3 device, the PC3-3712 Pentane gas detector is designed for continuously monitoring Pentane in the light industrial areas.

High-quality catalytic sensor in PC3-3712 shows excellent results in 0-100%LEL range.

• Sensor: Uses high-quality catalytic sensor to detect Pentane gas in 0-100%LEL range.
• Connection: Provides universal output 4-20mA and Modbus RS485
• Entry: 1 x 1/2″ NPT cable entry
• Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class.
• Remote Control: Detector status can be monitored through Prosense Gas Monitoring software remotely.
• Modbus: Easy to integrate into SCADA systems via open-source Modbus RS485(RTU) codes
• Relay Contacts: 2 Alarm, 1 Fault relays can be set predefined levels and they can manage the other devices like a siren, a beacon in case of any event.

Sensor Technology Catalytic
Output Signal 4-20mA Analog Modbus RS485 RTU
Sensor Warm-Up 60sec
Response Time(T90) <25sec
Accuracy %±1
Operating Temperature ‐20°C ~ +50°C
Humidity 5 ~ 95%RH Non-Condensing
Input Min 10VDC - Max 32VDC - Nominal 24VDC
Power Consumption Max.2W
Relay Outputs 2 Alarms (Selectable), and 1 Fault (All relays are NO/NC adjustable)
Cable Entry 1x 1/2"NPT
IP Rating IP65
Junction Box Epoxy Painted Die‐cast Aluminium
Sensor Head Nickel‐plated Brass
Dimensions/Weight 190x110x70mm / 810gr
Standards EN 60079‐0
EN 60079‐1
EN 60079‐18
Hazardous Class Zone 2 ‐ Category 3
